Java Under the Microscope: Stack, Heap, and GC in Sample Code

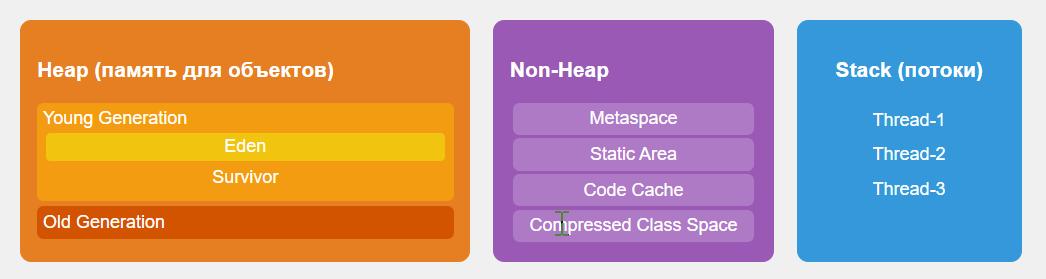

Diagram - Java Memory Model - Heap / Non-Heap / Stack

Java Memory Deep Dive: How Objects, Primitives, and Methods Live in Memory

// The MemoryExample class is stored in the Metaspace
public class MemoryExample {

    // Static variable - stored in the Metaspace / Static area
    static int staticVar = 10;
    // Metaspace:
    // MemoryExample.staticVar = 10

    public static void main(String[] args) {

        // Stack main:
        // args -> reference to an array of strings
        System.out.println("Start of main");

        // Create a Point object on the heap (Eden), the reference p is stored on the stack main
        Point p = new Point(5, 7);
        // Heap (Eden):
        // [Point object header | x=5 | y=7]
        // Main stack: p -> Point on the heap

        // Primitive variable a is stored on the main stack
        int a = 20;
        // Main stack: a = 20

        // Call the multiplyPoint method, passing a reference to p and the primitive a
        // The JVM creates a new stack frame for multiplyPoint
        int result = multiplyPoint(p, a);

        // ---------------- MultiplyPoint frame ----------------
        // pt -> reference to a Point object on the heap
        // factor = copy of a (20)
        // Operand stack for calculations
        // Execution: return pt.x * pt.y * factor = 5 * 7 * 20 = 700
        // ----------------------------------------------------
        // After returning from multiplyPoint, the frame is automatically deleted
        // The main stack is now active again

        System.out.println("Result: " + result);
        // Main stack: print 700

        // Nullify the p reference
        p = null;

        // Heap: Point object {x=5, y=7} is now unreachable
        // The JVM may delete the object automatically when it decides to free memory
        // If the object has survived several GC cycles → Survivor → Old Generation (presumably)

        // Create a new Point object
        Point q = new Point(10, 20);
        // Heap (Eden):
        // [Point object header | x=10 | y=20]
        // Main stack: q -> Point on the heap

        System.out.println("End of main");
        // After main completes:
        // Local variables args, result, q are cleaned up
        // Unreachable objects on the heap will be collected automatically by the GC
    }

    static int multiplyPoint(Point pt, int factor) {
        // ---------------- Stack frame of multiplyPoint ----------------
        // pt -> reference to the Point object on the heap
        // factor = copy of int
        // The JVM operand stack executes pt.x * pt.y * factor
        // ----------------------------------------------------------
        return pt.x * pt.y * factor;
    }
}

// The Point class is stored in Metaspace
class Point {

    int x; // object field is on the heap
    int y; // object field is on the heap

    Point(int x, int y) {
        // Constructor stack frame:
        // parameters x, y are local copies
        this.x = x; // assign the object field on the heap
        this.y = y; // assign the object field on the heap
        // After the constructor completes, the frame is deleted, the object remains on the heap
    }

    @Override
    public String toString() {
        return "Point{" + x + "," + y + "}";
    }
}

Java Caching and GC: How SoftReference Affects the Lifespan of Objects in Memory

import java.lang.ref.SoftReference;
import java.util.HashMap;

public class CacheGCExample {

    // Static cache map — lives in the Metaspace/Static area
    static HashMap

   > cache = new HashMap<>();

    public static void main(String[] args) {

        System.out.println("=== Start of main ===");

        // Create a regular object, the reference is stored on the stack
        Point p1 = new Point(100, 200);
        // Heap (Eden): Point object {x=100, y=200}
        // Stack main: p1 -> Point object on the heap

        // Add the object to the cache via SoftReference
        cache.put("first", new SoftReference<>(p1));
        // Heap: SoftReference object {ref -> Point (100,200)}
        // The cache is stored in the Static area
        // Even if p1 becomes null, the object can live as long as the SoftReference holds the reference

        // Remove the direct reference
        p1 = null;
        // Heap: Point object (100,200) is still reachable via SoftReference
        // Stack main: p1 reference removed

        // Call the method that creates temporary objects
        createTemporaryPoints();
        // Inside the multiplyPoint method, the stack frame: temporary objects are deleted after exiting
        // Heap: unreferenced objects, candidate for GC

        // Force garbage collection (for demonstration purposes only)
        System.gc();
        System.out.println("=== After System.gc() ===");

        // Check the cache
        SoftReference

     ref = cache.get("first");
        Point cachedPoint = ref.get(); // may return null if the GC has collected the object
        System.out.println("Cached point: " + cachedPoint);

        System.out.println("=== End of main ===");
    }

    static void createTemporaryPoints() {
        // Stack createTemporaryPoints: local references temp1, temp2
        Point temp1 = new Point(1, 2); // Heap: object {x=1, y=2}
        Point temp2 = new Point(3, 4); // Heap: object {x=3, y=4}
        // temp1, temp2 live only on the method stack
        // After the method exits, the references will disappear -> candidate objects for GC
    }
}

// The Point class is stored in Metaspace
class Point {

    int x; // the object field is on the heap, inside the object block
    int y;

    Point(int x, int y) {
        // Stack: constructor parameters x,y
        this.x = x; // assign to the object field on the heap
        this.y = y;
    }

    @Override
    public String toString() {
        return "Point{" + x + "," + y + "}";
    }
}




Example with JVM, JIT, and Code Cache

public class JITCodeCacheExample {

    public static void main(String[] args) {

        System.out.println("=== Start of main ===");

        // Create an object, the reference is stored on the main stack
        Point p = new Point(2, 3);
        // Heap: Point object {x=2, y=3}
        // Stack main: p -> Point

        int result = 0;

        // JIT warm-up loop: The JVM considers the hot method after several calls
        for (int i = 0; i < 1_000_000; i++) {
            result += multiplyPoint(p, i);
            // multiplyPoint is called multiple times
            // First, the interpreter executes the bytecode
            // When the JVM finds the method hot, it compiles to Code Cache (native code)
            // Further calls go directly to Code Cache
        }

        System.out.println("Result: " + result);

        // Nullify the reference
        p = null;

        // Heap: the Point object becomes a candidate for GC
        // Code Cache: multiplyPoint remains in memory, the GC does not touch Code Cache

        System.out.println("=== End of main ===");
    }

    // Method that will be compiled to Code Cache after "warming up"
    static int multiplyPoint(Point pt, int factor) {
        // Stack Frame is created on each call
        return pt.x * pt.y * factor;
        // The pt.x and pt.y fields are read from the Heap
        // The method instructions themselves are stored in the Code Cache after the JIT
    }
}

// The Point class is stored in the Metaspace
class Point {

    int x;
    int y;

    Point(int x, int y) {
        this.x = x;
        this.y = y;
    }

    @Override
    public String toString() {
        return "Point{" + x + "," + y + "}";
    }
}

This example demonstrates how the JVM's JIT compiler works: after multiple calls, the multiplyPoint method is compiled to native code and stored in the Code Cache, while objects and references remain in the Heap/Stack.

• The method is executed through the interpreter until the JVM marks it as hot.
• After multiple calls, the method is compiled into the Code Cache → super-fast execution.
• The Code Cache is separate from the Heap and is not touched by the GC.
• Objects in the Heap live as long as there are reachable references and can be collected by the GC.
• Stack frames are created for each method call and deleted after return.

Code Cache = "super-fast JVM binary code", Heap = objects, Stack = method frames, Metaspace = bytecode/classes.
